Cable Stair Railing

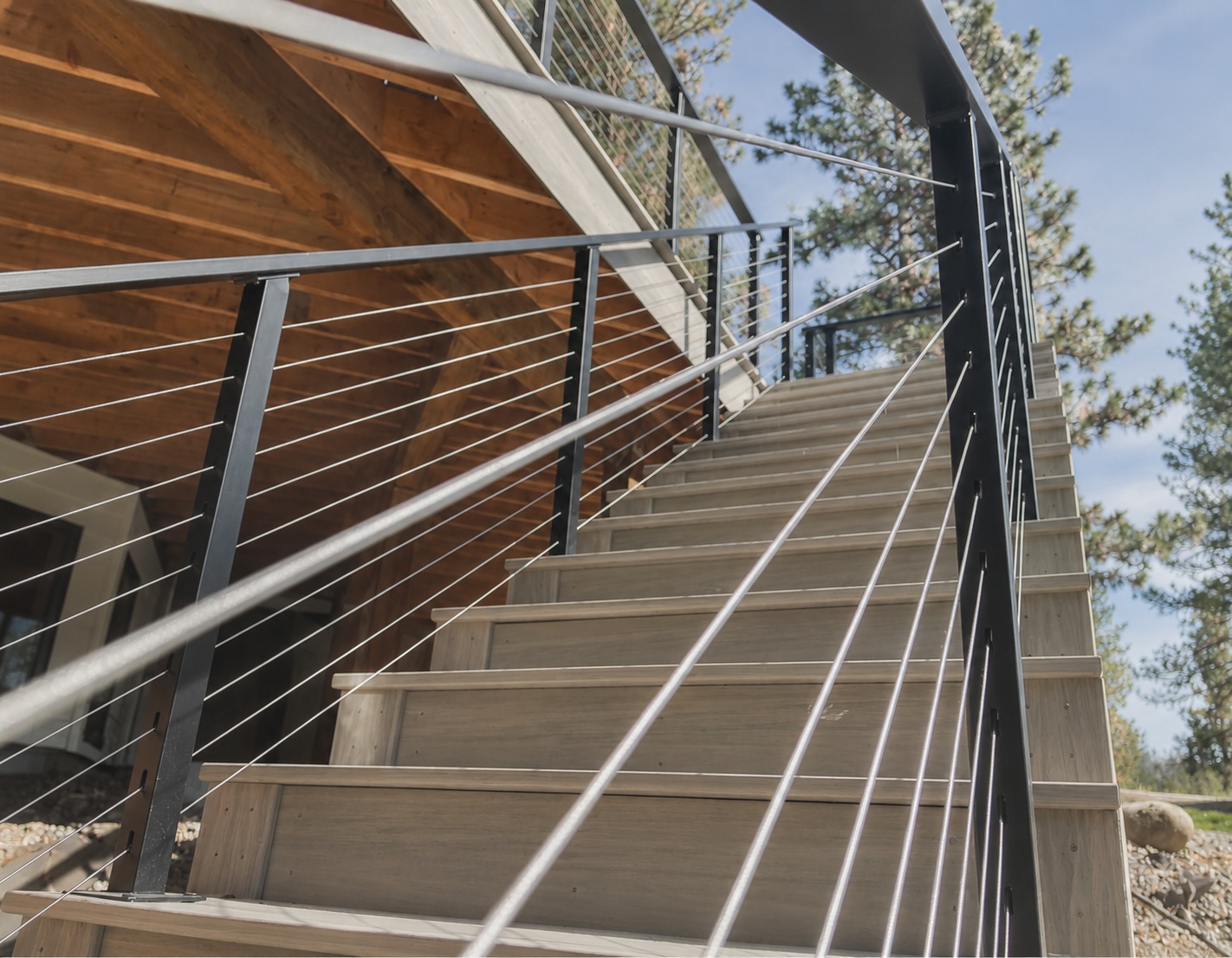

Cable rail stairs trade a heavy stair guard for a set of thin parallel lines that follow the angle of the run. The eye reads the staircase, not the balustrade. It is the choice for an open-plan main run, a loft staircase, or a feature stair that meets a tall window or atrium.
DBM designs and produces each cable stair railing run around your staircase. Share a stair drawing, a sketch, or a photo of the existing stringer. We turn it into a working drawing, then build the posts, top rail, and cable assembly ready for shipment.
Choose the Right Cable Build for Your Stair Run
Stair Angle Build — Angled End Fittings
Stair cables run parallel to the stringer, not horizontal — so the end fittings at each post are angled to match the stair pitch. We build each fitting set to the actual rise and run of your staircase.
End Fittings — Swage / Tensioner
Cables terminate at the newel posts at top and bottom of the run. Swage at one end, tensioner at the other — common pattern on residential stair runs. We swage at the factory where possible.
Cable Count — By Guard Height
The number of cables on a stair run follows the guard height your local code calls for. We size the layout from your drawing so the spacing reads even from top to bottom.
Top Rail — Wood / Metal
A solid wood top rail in oak or walnut warms the hand and ties the stair into a timber tread story. A metal top rail keeps the whole guard as one continuous geometric line.
Where Cable Stair Railing Fits — Four Common Project Types
Villa Main Stair Run
The main staircase rising through a double-height entry hall. Cable keeps the volume open and the light moving between floors. A timber top rail pairs naturally with wood treads.
Modern New Home Build
Drawn in from the architect’s plans — an open stair facing the living room or the kitchen island. Cable balustrade keeps the floor plan reading as one connected space.
Loft Apartment
Mezzanine stair, sleeping loft, internal stair between split levels. The thin cable lines free up sight lines in a compact loft where a solid balustrade would close down the room.
Renovation Feature Stair
An existing stringer kept; the guard replaced. Cable railing on a renovated staircase is a common way to lift an older home into a contemporary look without rebuilding the run.
From Sketch to Site — Three Stages
Share a stair drawing, a sketch, or a photo of the stringer with rough dimensions. We turn it into a working drawing covering newel post locations, cable count, fitting angle, and the top-rail meet at landings.
Newel posts, top rail, and cable assemblies are trial-fit and photographed in our Guangdong workshop before crating. Each part comes labeled to the drawing, so on-site work is typically bolt-up and final tension — not field-welding.
Wooden crates built for ocean freight, packed in the order your installer will assemble. Shipped to 60+ countries — including the USA, Australia, the EU, and across Asia.
After delivery, your contractor or installer handles fitting. We provide an assembly guide and a step-by-step video. Where local installation is available in your region, we can help you find a vetted installer.
Cable Stair Railing
Following the Rake — Why a Sloped Cable Run Is Its Own Problem.
An open staircase reads best when the balustrade barely registers against the treads. Owners want the eye to follow the climb, not a heavy guard beside it. A configuration of fine horizontal cables can deliver that, since the parallel lines simply trace the diagonal of the staircase.
The reason owners reach us is that a sloping run is not a level run tilted over. The cables now climb at the pitch of the stringer, and every termination has to meet the post at that identical angle. So the brief carries a quiet engineering demand. They want clean parallel lines that hold their tension all the way up an inclined flight.
Why the Rake Angle Drives the Whole Configuration.
The pitch of the staircase is the dimension that governs the entire stair-cable build. A level deck terminates its cables perpendicular against the post, which is the simpler case. A raked run meets the post at the diagonal incline instead, so each angled fitting must sit at that exact orientation to keep the cable straight.
That incline also reshapes how the spacing has to be measured. Building regulations measure the opening between cables along the diagonal, not vertically, so the effective clearance differs from a level configuration. We calculate the cable count and the spacing against your actual rise and run, so the horizontal lines stay consistent up the whole flight.
The newel posts at top and bottom then carry the demanding work of the run. Each post anchors the accumulated tension of the cables pulling up or down the incline, so it needs a structural fixing into the framing. We detail that connection on the drawing, because a staircase newel carries a heavier load than an intermediate deck post.
How the Sloped Run Changes With the Staircase.
A Straight Flight vs a Run With Landings.
A single straight flight is the cleanest case, because the rake holds one continuous angle from bottom to top. A run interrupted by a landing changes the geometry partway up. The cables stop at the landing, level off, then continue on the following flight at the incline above. We position a newel post at each transition, so every angled section terminates independently on its own.
A Steep Flight vs a Shallow One.
The steepness of the staircase quietly shifts the spacing the run must hold. A steeper flight widens the opening measured along the diagonal, so the configuration may introduce another cable to maintain the clearance. A shallower flight reads closer to a level run, so the layout sits nearer the deck pattern. We calculate the cable count to the actual pitch, never to a single fixed dimension.
A New Stair vs a Kept Stringer.
A new staircase lets us coordinate the cable configuration with the stringer from the beginning. A renovation keeps the existing stringer, so we adapt the run to the angle and fixings already established there. The posts then meet the retained timber or steel at its particular pitch and surface. We measure the run against what the staircase actually gives us, not a generic stair model.
What Coordination Looks Like for a Sloped Run.
Drawing-First Coordination begins with the rise and run of your staircase. We confirm the pitch, the landings, and the newel connections before anyone cuts metal. The working drawing then specifies each fitting angle and the cable count, so the parallel lines hold their tension along the climb.
Trial Assembly Before Packing then stands the newel posts and the angled rail together on our Guangdong workshop floor. We press the fittings at the diagonal incline, set the tensioners, and confirm the horizontal lines run parallel. Then we label each component against the drawing, so the build on your staircase stays an ordered bolt-together job.
Export-Ready Crating packs the parts in the order your installer raises them up the flight. We seat the heavy newels low and protect the cable coils and fittings for the long ocean leg. The crate lands ready to open, sort, and assemble straight against the drawing.
What to Send Us About Your Stair.
A stair drawing or a clear photo of the stringer gives us a strong start. Add the rise and run, since those two figures fix the rake angle for us. Then note any landing, because each one needs its own newel in the layout.
One more line of detail completes the picture. Tell us the guard height your project works to, and whether the stringer is new or kept. From there we turn your notes into a working drawing and a stair run ready to ship.
After delivery, fitting is on your side. On site, your contractor or installer handled fitting directly from our drawings, with our assembly guide and step-by-step video to follow — or use your own local installer where needed.
